Fiber Optical Cable 1Km Price Ftth Optical Fiber Cables Wires

  • 1
  • 2

Brand Name : PUNAISGD

Model Number : GJYXFCH-2B6a1

Certification : CE/ROHS/ISO9001

Place of Origin : Guangdong, China

MOQ : 1km

Price : negociate

Payment Terms : T/T,Western Union

Supply Ability : 1000000km/month

Delivery Time : 7days

Packaging Details : woode drum

Keyword : Optical Fiber Drop Cable

Type : GJYXFCH-2B6a1

Jacket Sheath : LSZH

Net Weight : 0.8kg/km, add 0.05kg/km

Steel : 0.45mm

Installation Style : Aerial

Fiber : G652D/G657A1

Steel Wires : 1mm, 0.45mm*2pcs

Installation Method : Indoor/Outdoor

Contact Now

Fiber Optical Cable 1Km Price Ftth Optical Fiber Cables Wires

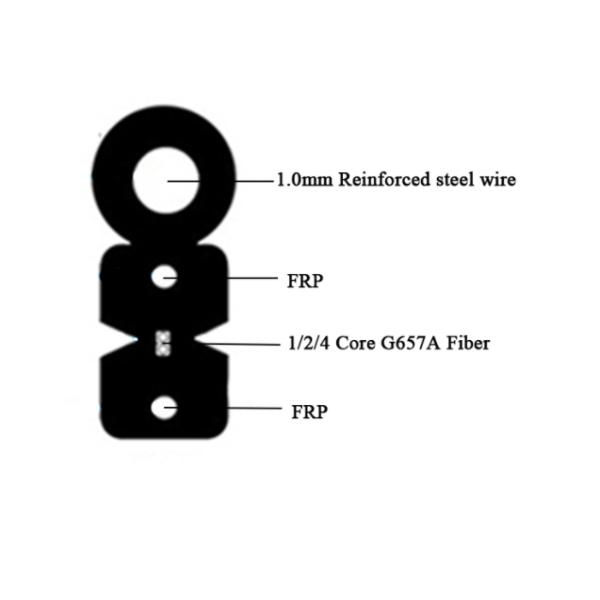

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath.
● Characteristics
● Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
● Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
● Simple structure, light weight and high practicability;
● Novel flute design, easily strip and splice, simplify the installation and maintenance;
● Low smoke, zero halogen and flame retardant sheath.

GJYXFCH-2C Specification:

Fiber Core:2
Cable Dimension(mm):2.0*5.0
Cable Weight (kg/km):17.5
Outer Jacket:LSZH
Strength Member:1 Steel Wire + 2 FRP
ShortTerm Tensile strength(N):1200
LongTerm Tensile strength(N):360
Dynamic Bending Radius(MM):35
Static Bending Radius(MM):15
Fiber Type:G.657A1
Mode Field Diameter:9.1±0.2 μm
Cladding Diameter:124.9±0.4 μm
Coating Diameter:248±0.2 μm
Transmission Mode:SMF-9/125
Optical Wave Length:1310/1550(nm)
Attenuation(dB/km):≤0.35
Fiber Optical Cable 1Km Price Ftth Optical Fiber Cables WiresFiber Optical Cable 1Km Price Ftth Optical Fiber Cables Wires
Fiber Optical Cable 1Km Price Ftth Optical Fiber Cables WiresFiber Optical Cable 1Km Price Ftth Optical Fiber Cables Wires
Bow-type Drop Outdoor/Indoor Cable for Access Network
Technical Parameters
Fiber Count
Cable Type
Cable
Cable Weight
(kg/km)
Tensiles Strength
Crush Resistance Long/short
Benging Radius
1
GJYXCH
2.0*5.0
20
300/600
1000/2000
20D/40D
2
GJYXCH
2.0*5.0
20
300/600
1000/2000
20D/40D
4
GJYXCH
2.0*5.0
20
300/600
1000/2000
20D/40D
1
GJYXCH
2.0*5.0
19
300/600
1000/2000
20D/40D
2
GJYXCH
2.0*5.0
19
300/600
1000/2000
20D/40D
4
GJYXCH
2.0*5.0
19
300/600
1000/2000
20D/40D
